1 / 7✕2 PINCHCADILLAC / 02 · MODEL ATW-01

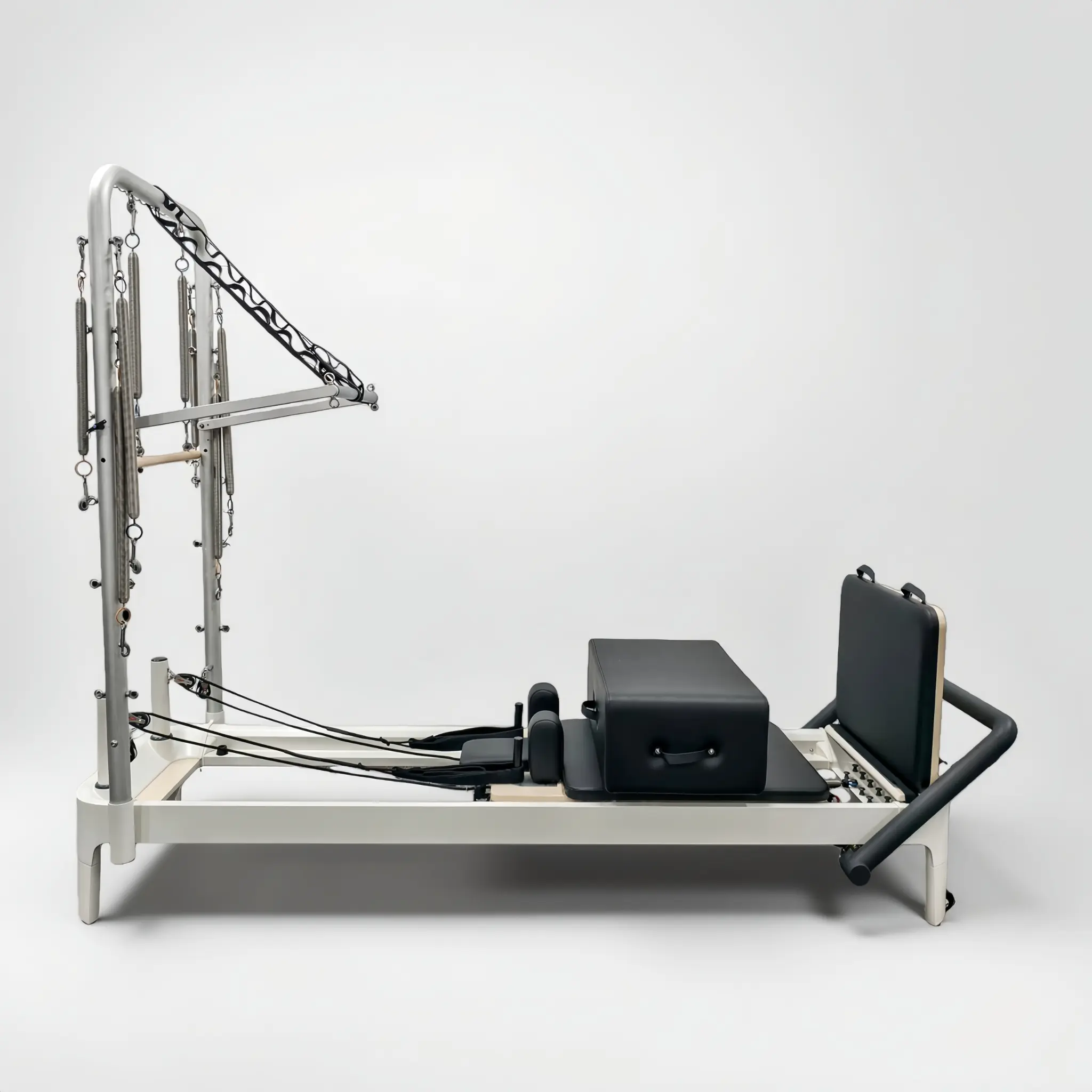

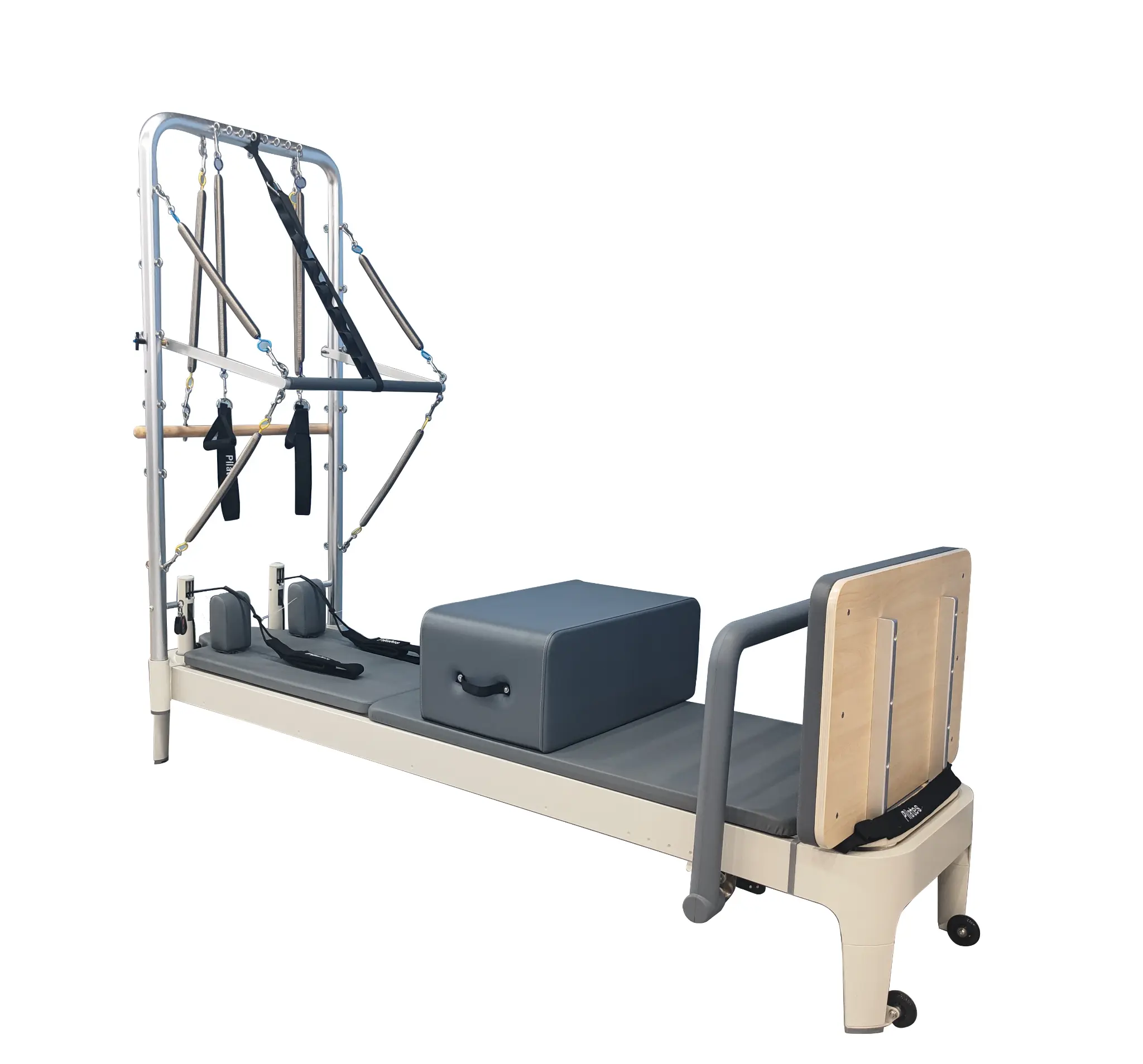

Aluminum Pilates Reformer with Tower
Integrated aluminum tower, 13 color-coded German springs and a complete studio-ready Reformer configuration
ATW-01 is an aluminum Pilates Reformer with an integrated tower for Pilates studios, rehabilitation spaces and professional home training. A die-cast aluminum-alloy frame, precision-guided rails and quiet carriage wheels support smooth, controlled daily use. The integrated aluminum tower adds vertical and horizontal resistance work for lying, seated and standing exercises. Its published configuration includes 13 color-coded German springs—five for the Reformer and eight for the tower—plus a jumpboard, padded box, converter board, push-through bar, double-loop straps, foot strap, pulley posts and transport wheels. The published Reformer footprint is 239 × 82 × 38 cm.
13
Springs
239 cm
Unit Length
Tower
Form Factor
Aluminum
Material
Full Specifications
All data measured at the factory. Certificates and test reports available on request.
| Material | Die-cast aluminum-alloy frame with integrated aluminum tower |
|---|---|
| Product Size | 239 × 82 × 38 cm |
| Carriage | 92 × 61 cm; precision-guided rails with quiet wheels and bearings |
| Springs | 13 color-coded German springs: 5 Reformer springs + 8 tower springs |
| Footbar | 4-position adjustable footbar |
| Frame | Integrated tower for vertical and horizontal resistance work |
| Upholstery | Microfiber-leather upholstery with EVA cushioning |
| Included | Jumpboard / padded box / converter board / push-through bar / double-loop straps / foot strap / pulley posts / transport wheels |
| Training Use | Pilates studios / rehabilitation spaces / professional home training |
Key Features
Die-cast aluminum-alloy construction with precision rails, quiet wheels and bearings supports smooth, controlled Reformer movement

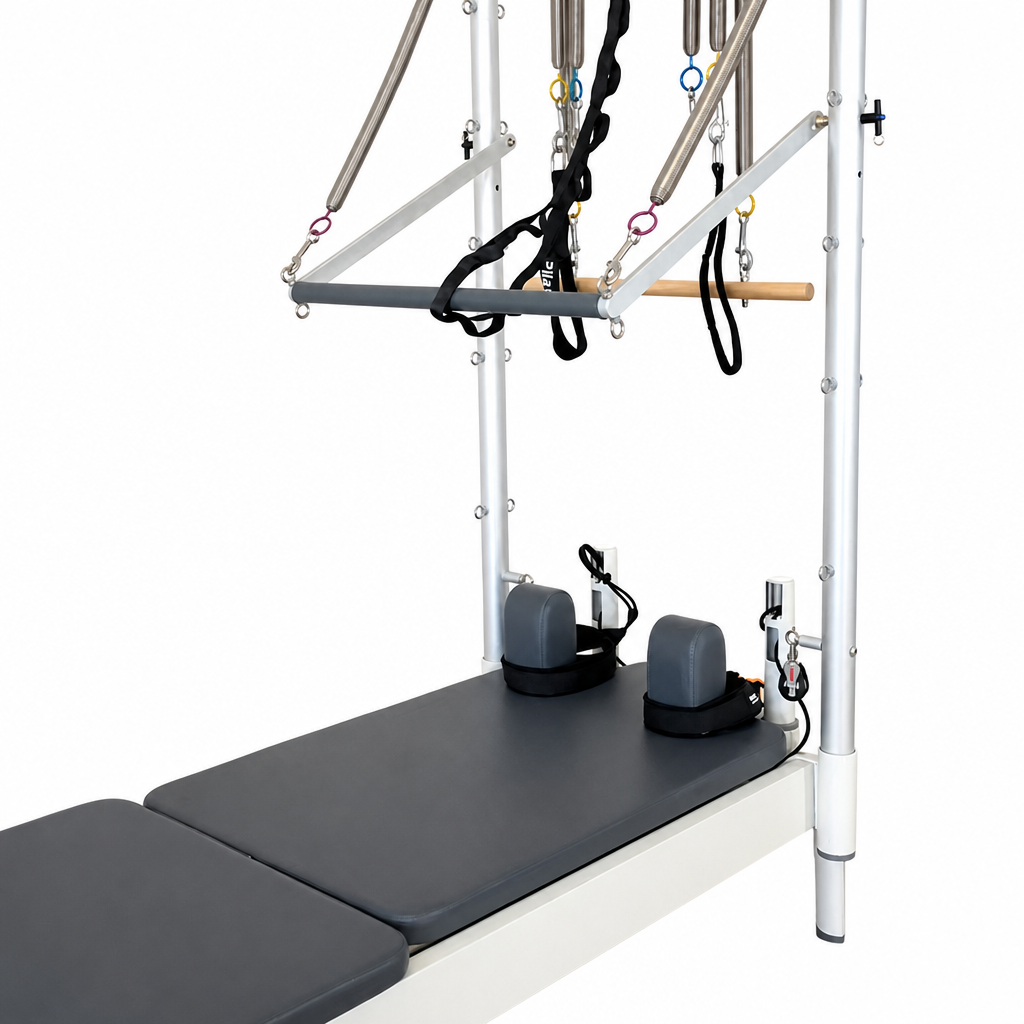

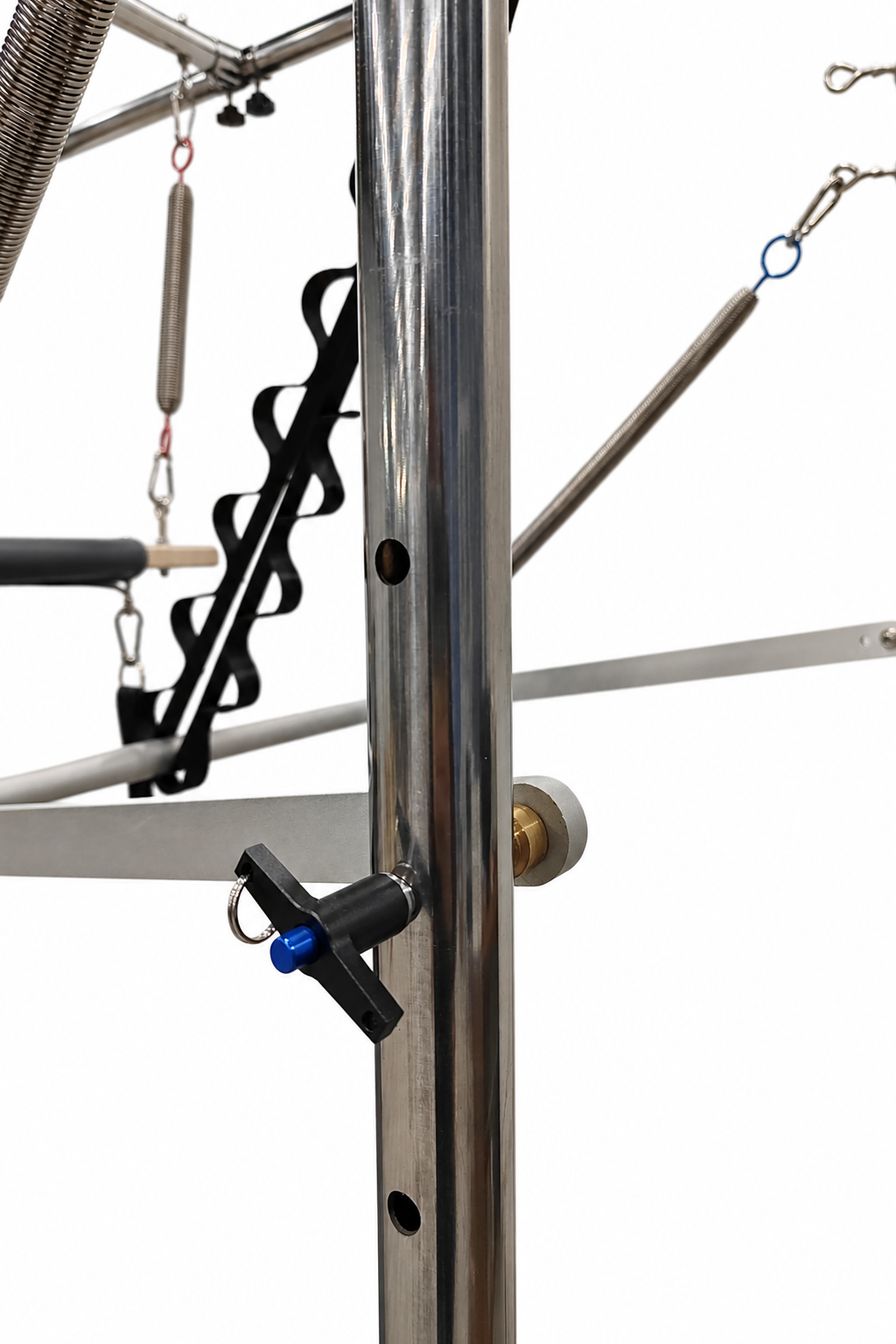

The integrated aluminum tower creates vertical and horizontal resistance options for lying, seated and standing exercises

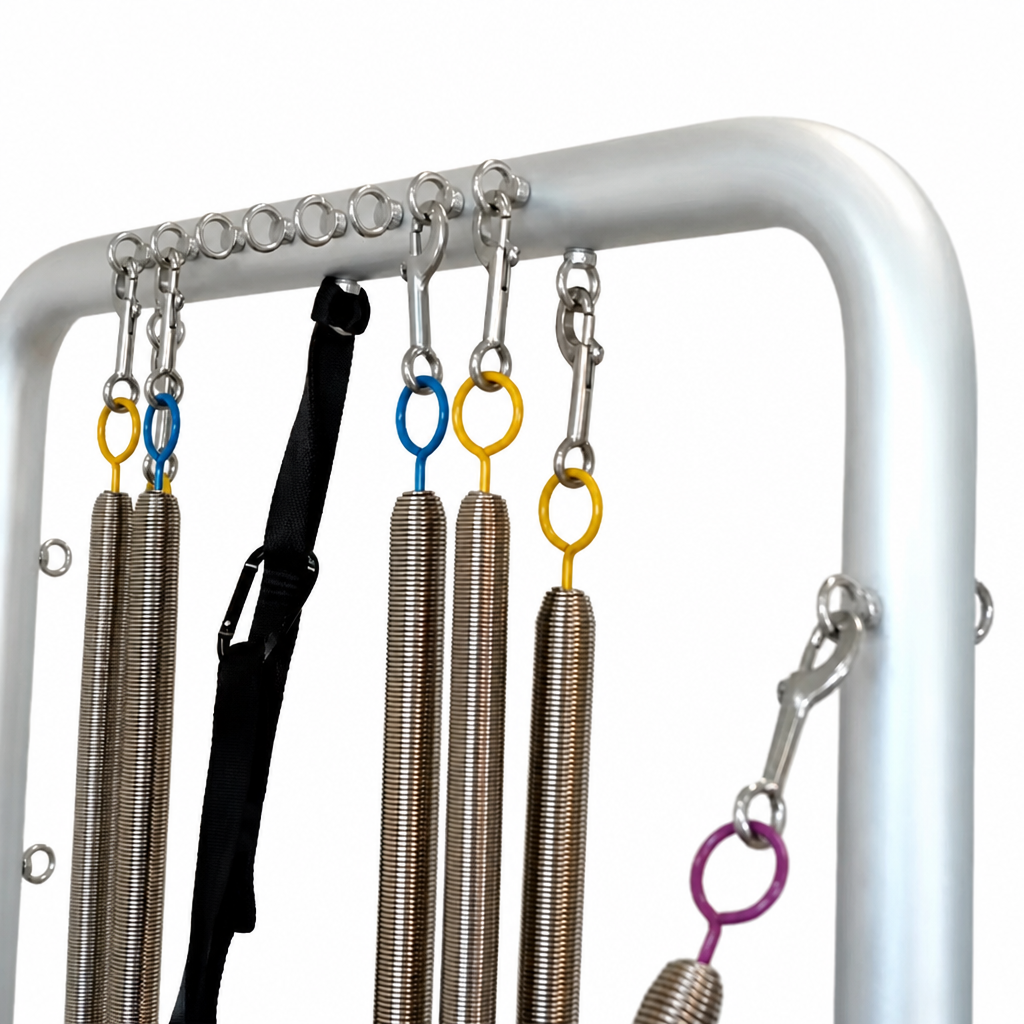

Thirteen color-coded German springs combine five Reformer springs with eight tower springs for clear resistance selection
A four-position footbar, adjustable shoulder rests, headrest and double-loop rope system support flexible setup for different users

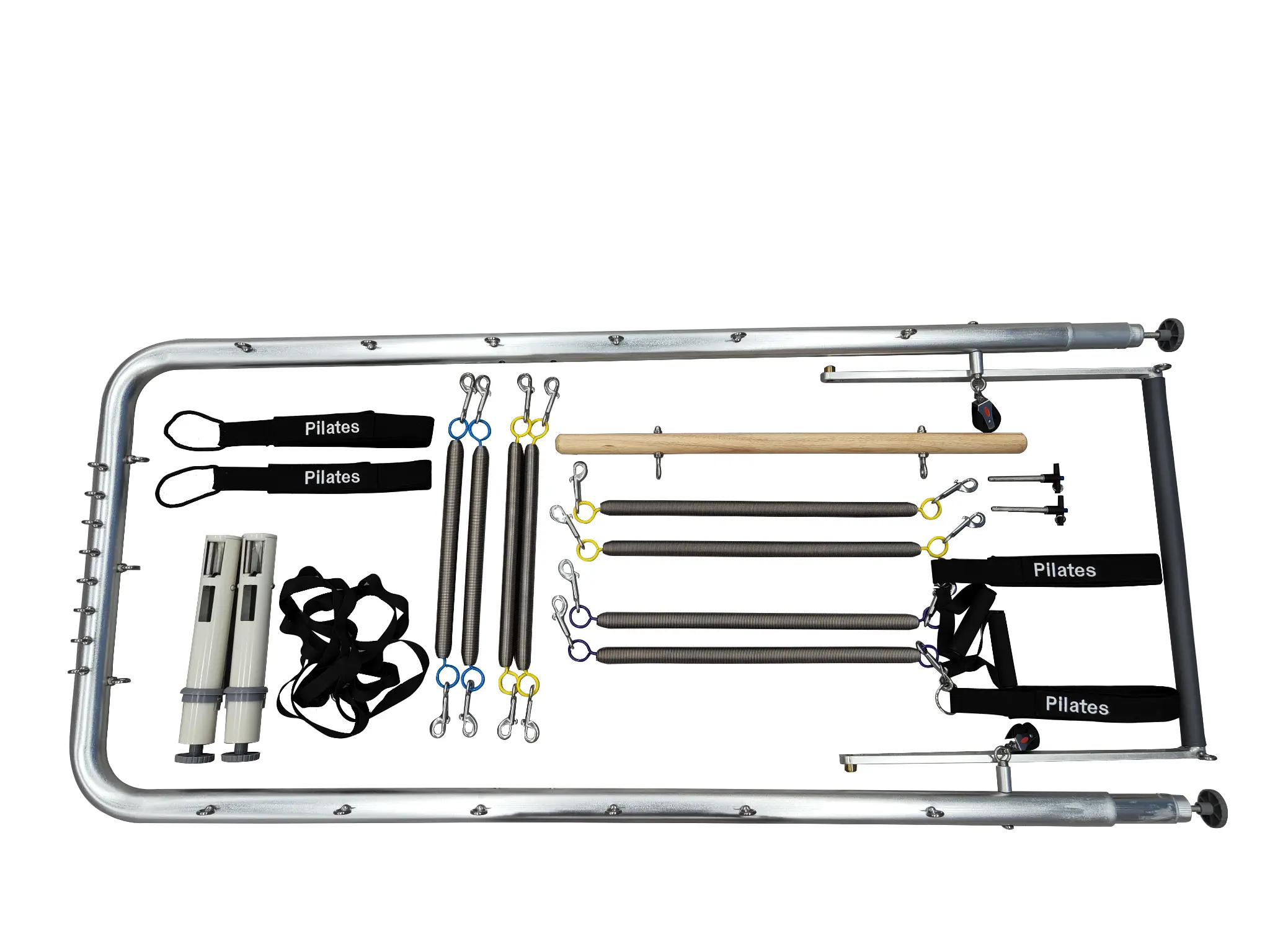

Included jumpboard, padded box, converter board, push-through bar, straps, pulley posts and transport wheels support multi-station studio programming
03 / OEM SERVICE
OEM available for this model
Logo, frame color, upholstery and packaging can all be customized to your brand. Send your logo to preview a mockup first.
