Pilates Spring Set
Color-coded steel springs in three published resistance levels for equipment replacement

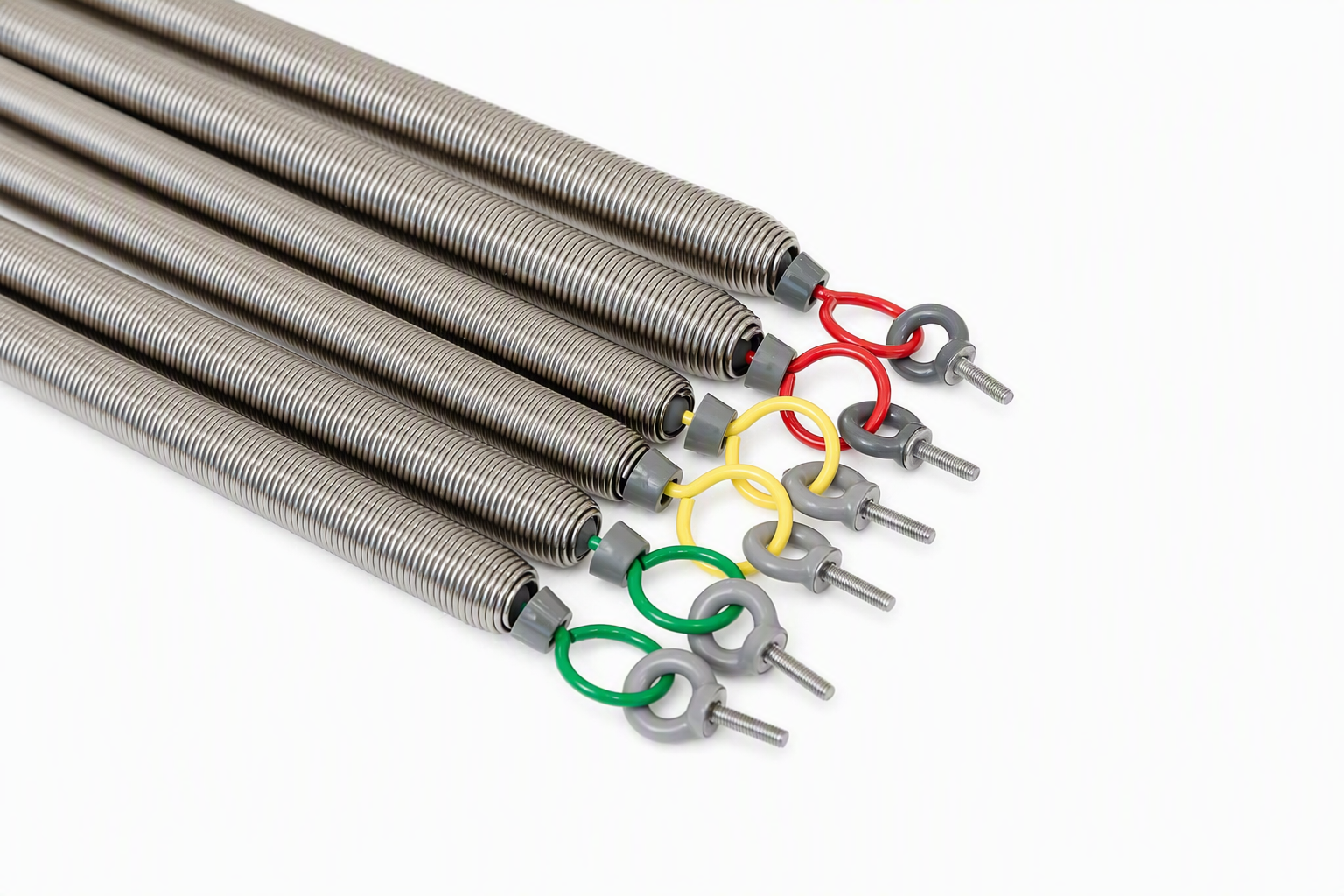

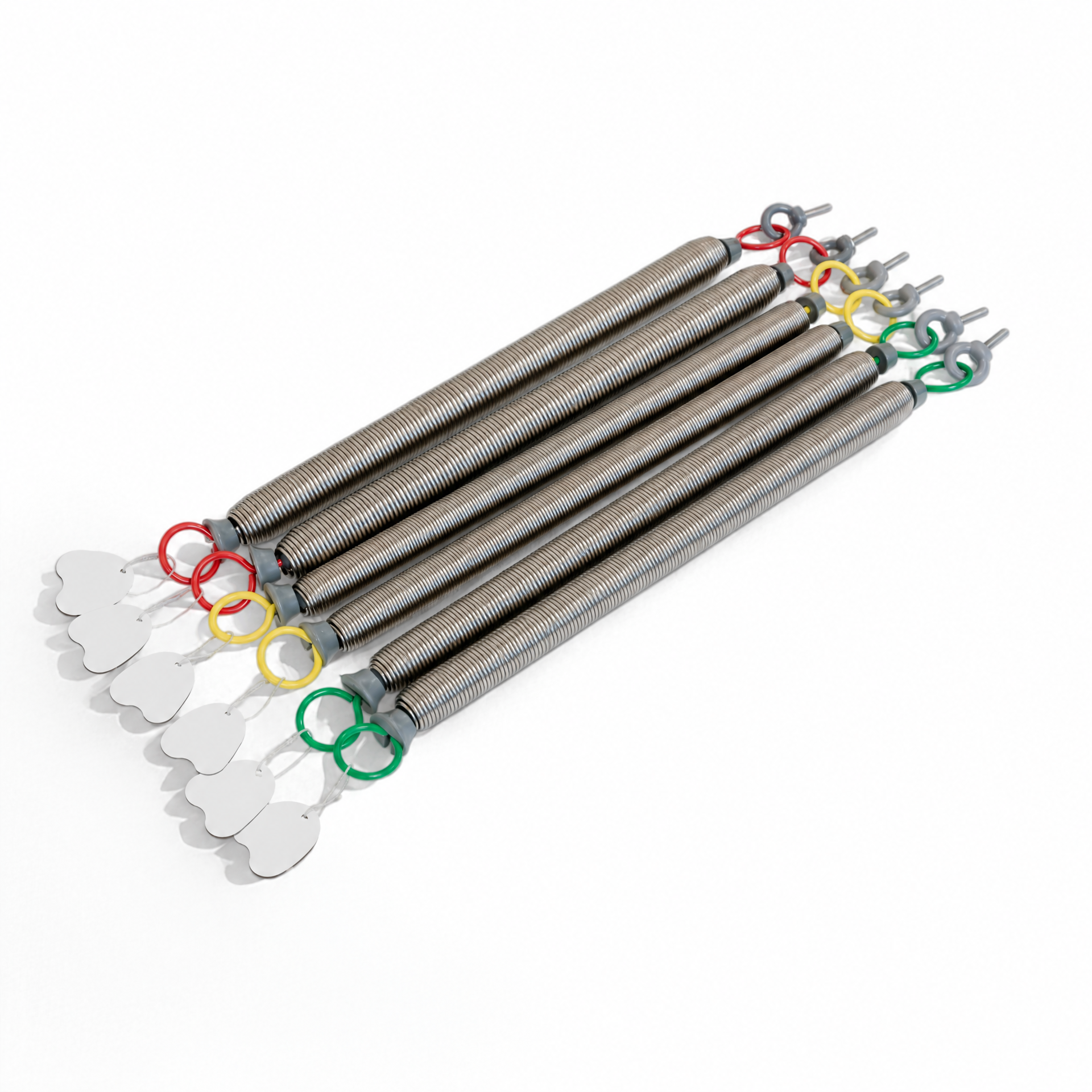

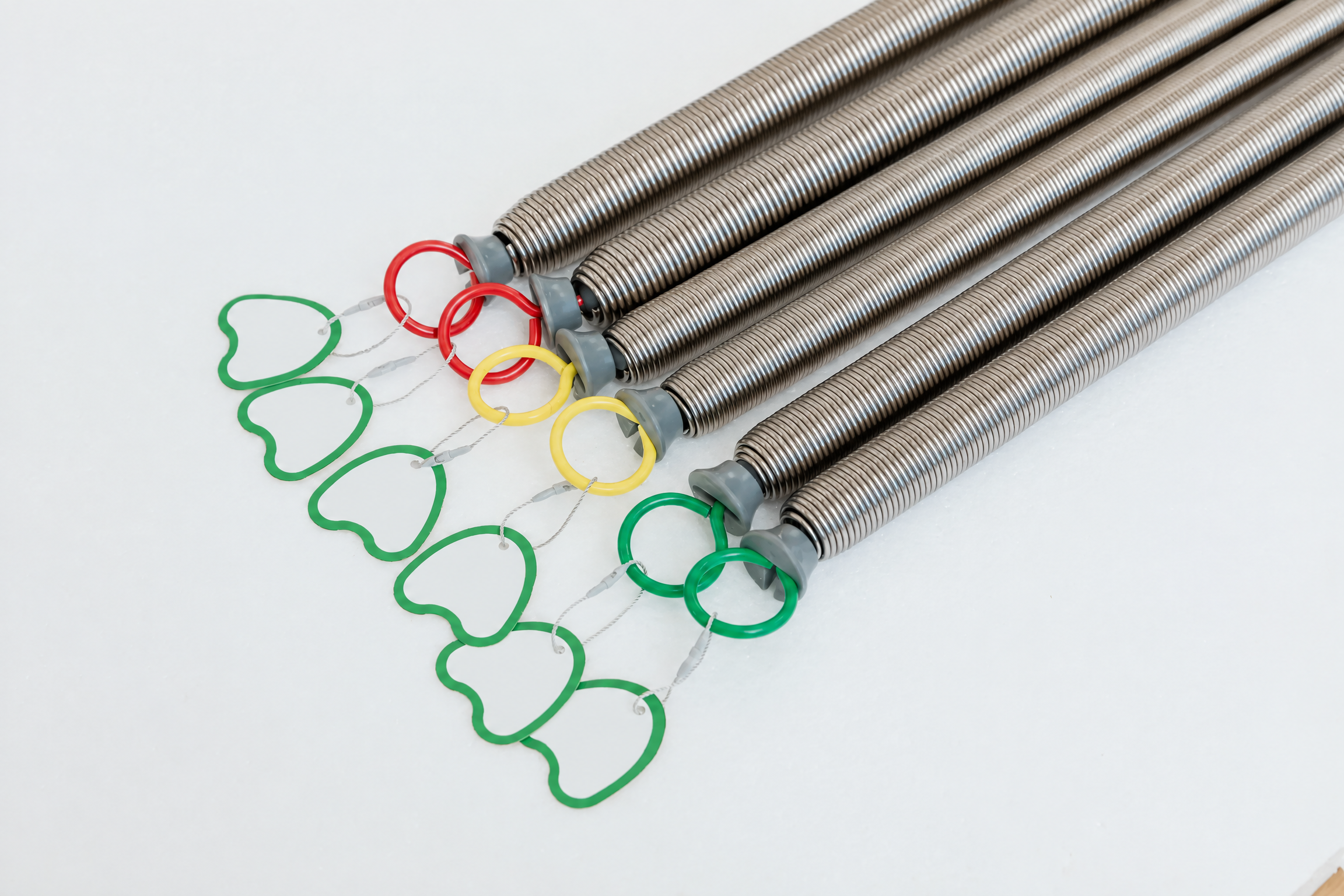

A steel Pilates spring set with end rings and three published color-coded resistance levels: red 28 kg, green 12 kg and yellow 9 kg. The spring length including rings is 47 cm, with a maximum published stretch length of 100 cm. Compatibility is confirmed against equipment connection points before ordering.
3
Resistance Levels
47 cm
Unit Length
100 cm
Form Factor
9–28 kg
Resistance Range
Full Specifications
All data measured at the factory. Certificates and test reports available on request.
| Material | Steel springs with end rings |
|---|---|
| Spring Length | 47 cm including rings |
| Max Stretch Length | 100 cm |
| Resistance Levels | Red 28 kg; Green 12 kg; Yellow 9 kg |
| Wire Diameter | Red 0.28 cm; Green 0.23 cm; Yellow 0.20 cm |
| Compatibility | Pilates equipment replacement; confirm connection points before ordering |
| Customization | Color coding, end rings and packaging subject to quotation |
Key Features
Three color-coded levels support different resistance requirements
Steel spring and end-ring construction suits replacement and resistance setup
Maximum published stretch length of 100 cm supports matching to training travel
Confirm connection points, length and resistance before ordering
03 / OEM SERVICE
OEM available for this model
Logo, frame color, upholstery and packaging can all be customized to your brand. Send your logo to preview a mockup first.
