1 / 8✕2 PINCHCADILLAC / 02 · MODEL cla02T
Classical Aluminum Reformer With Tower
Classical aluminum reformer and tower in one, with a 13-spring system and complete studio accessories
cla02T is a classical aluminum reformer with tower for commercial Pilates studios. Its 240 × 91 × 196 cm integrated structure combines a die-cast aluminum frame, 1 mm microfiber upholstery and high-density foam. Five carriage springs and eight tower springs create a 13-spring resistance system, while the sitting box, jumpboard, converter mat, double loops, nylon ropes, push-through bar and safety rope support reformer, tower and mat programming.
13
Total Springs
240 cm
Unit Length
120 kg
Net Weight
Aluminum
Material
Full Specifications
All data measured at the factory. Certificates and test reports available on request.
| Material | Die-cast aluminum alloy frame |
|---|---|
| Product Size | 240 × 91 × 196 cm |
| Packing Size | 248 × 75 × 53 cm |
| Net Weight | 120 kg |
| Gross Weight | 155 kg |

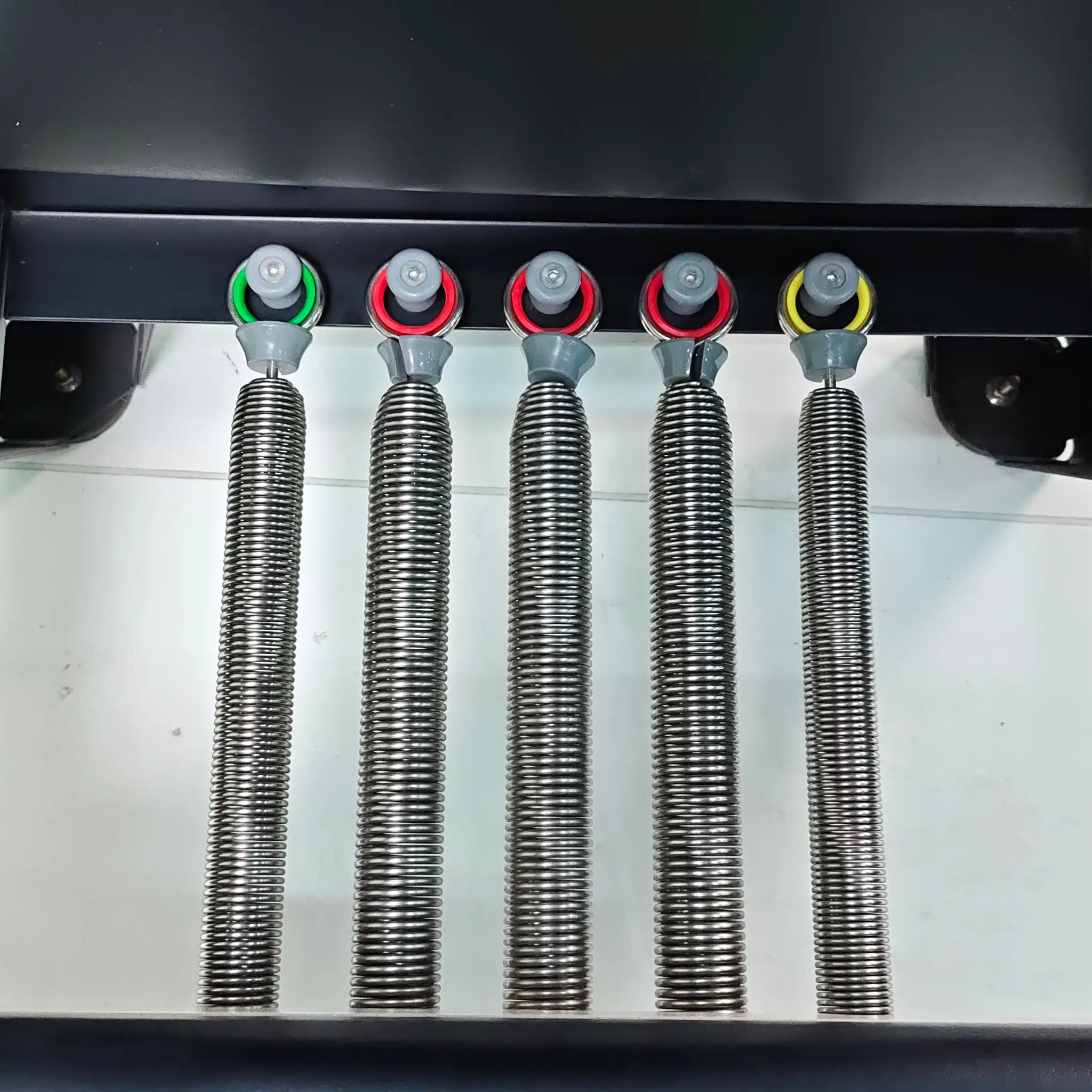

| Bed Springs | 5 springs · 3 red 28 kg / 1 green 12 kg / 1 yellow 9 kg |

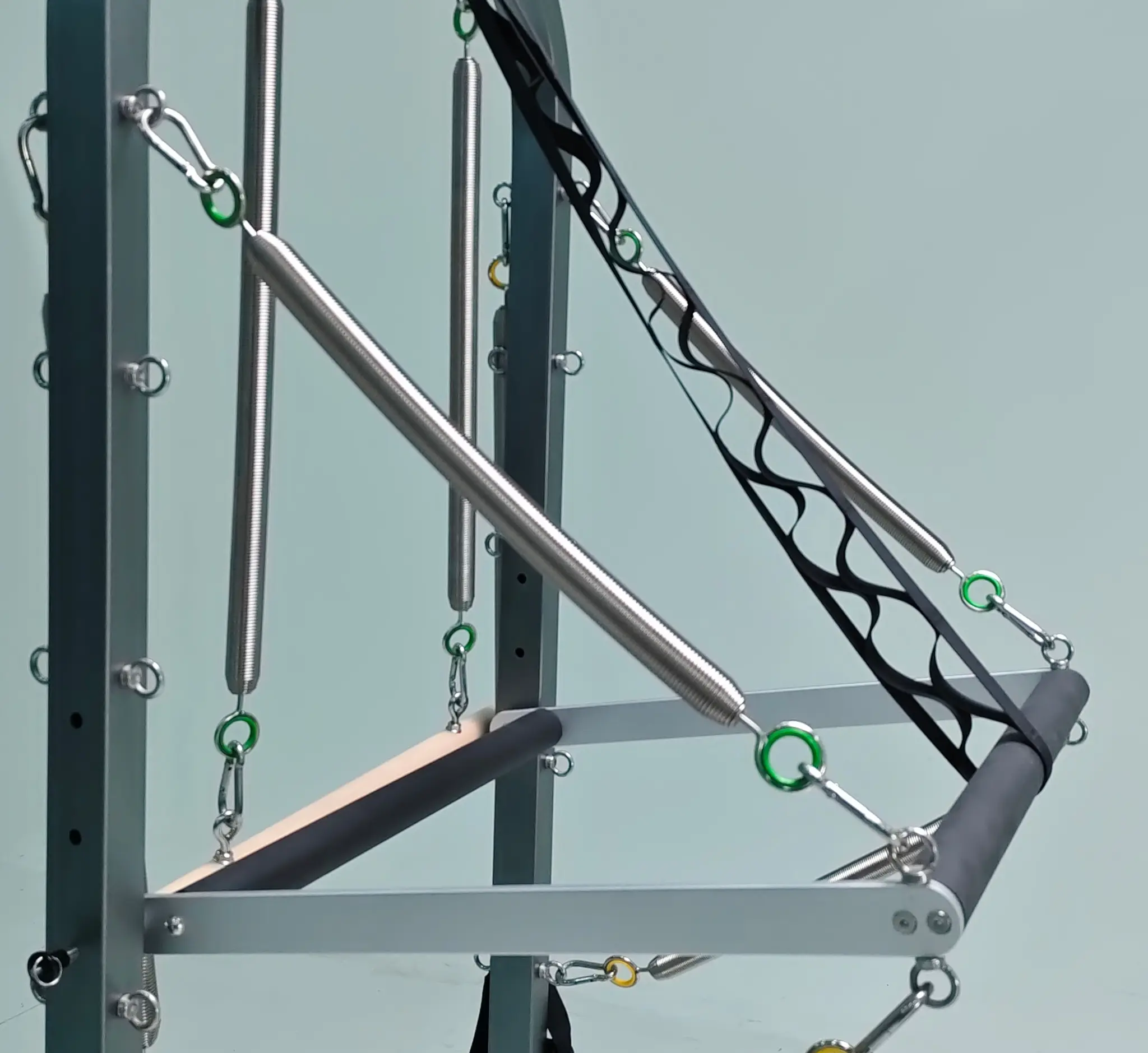

| Tower Springs | 8 springs · 2 short yellow 9 kg / 2 long yellow 10 kg / 2 short green 12 kg / 2 long green 14 kg |
| Upholstery | 1 mm microfiber leather + high-density foam |
| Included | Sitting box / headrest / shoulder rests / full-track footbar / jumpboard / double loops / nylon ropes / push-through bar / converter mat / safety rope |
Key Features

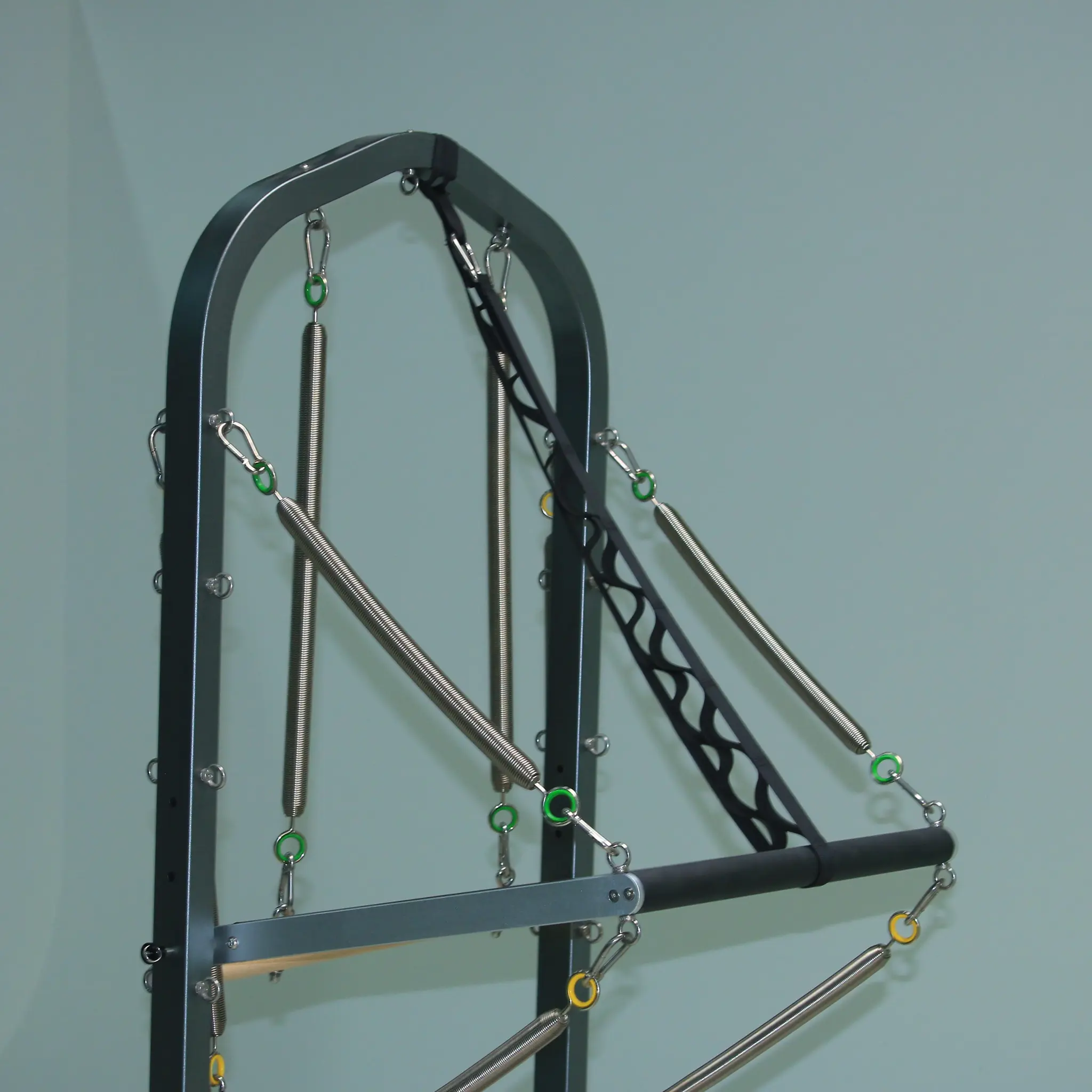

Die-cast aluminum frame and aluminum tower form a stable integrated structure for commercial studio use
Thirteen springs are divided between five carriage springs and eight tower springs for clearly tiered resistance

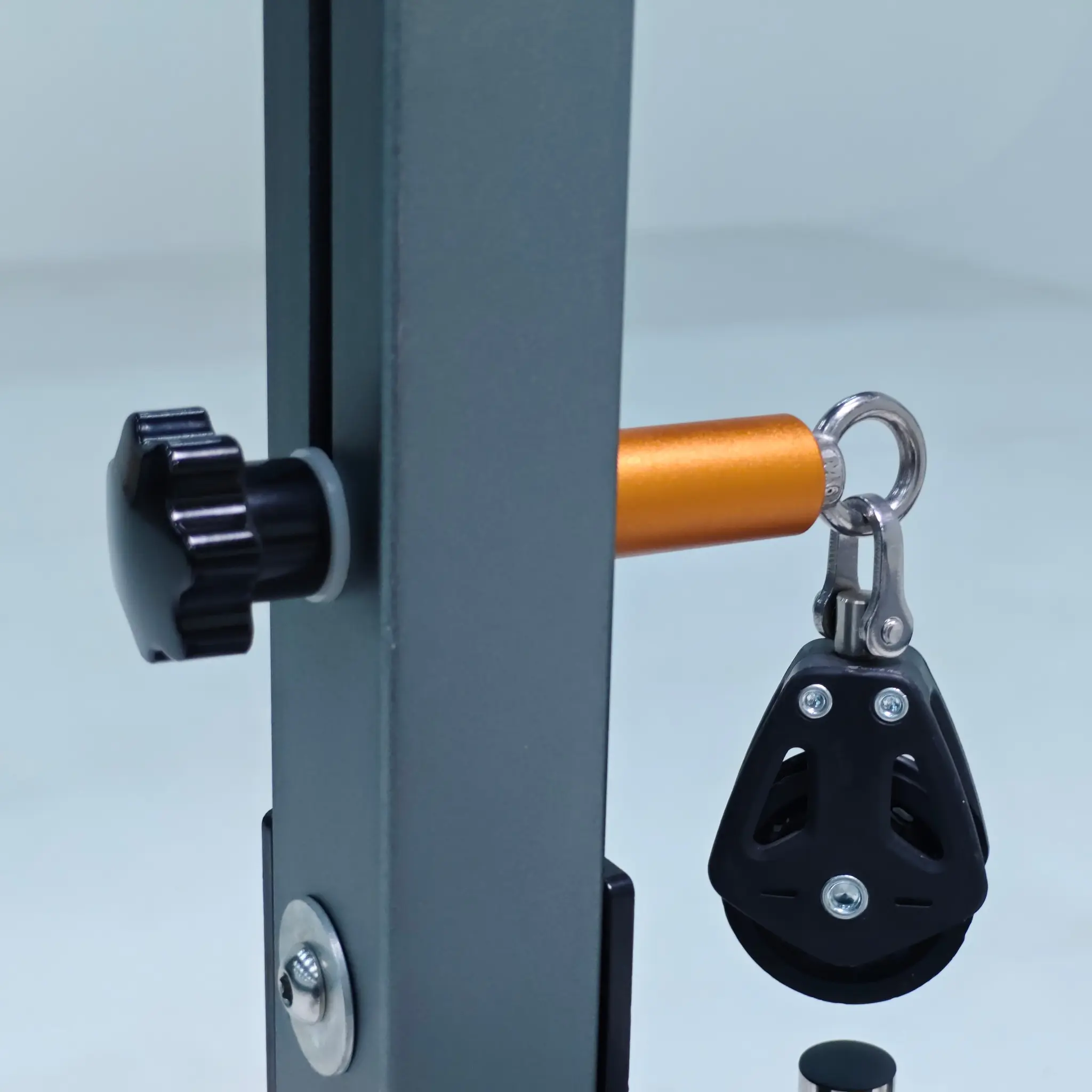

A full-track cushioned footbar, ten pulleys and quiet wheel components support smooth carriage and rope work

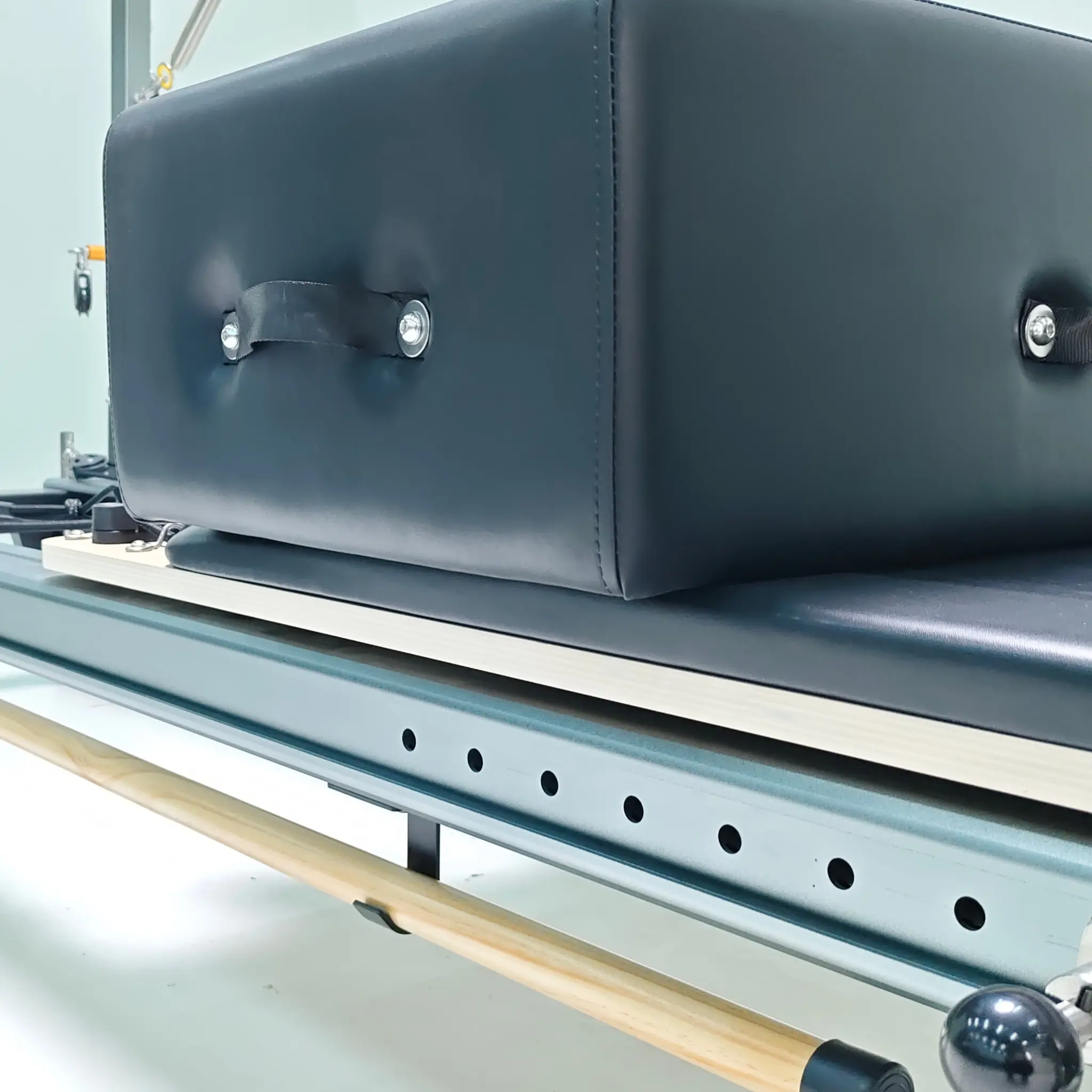

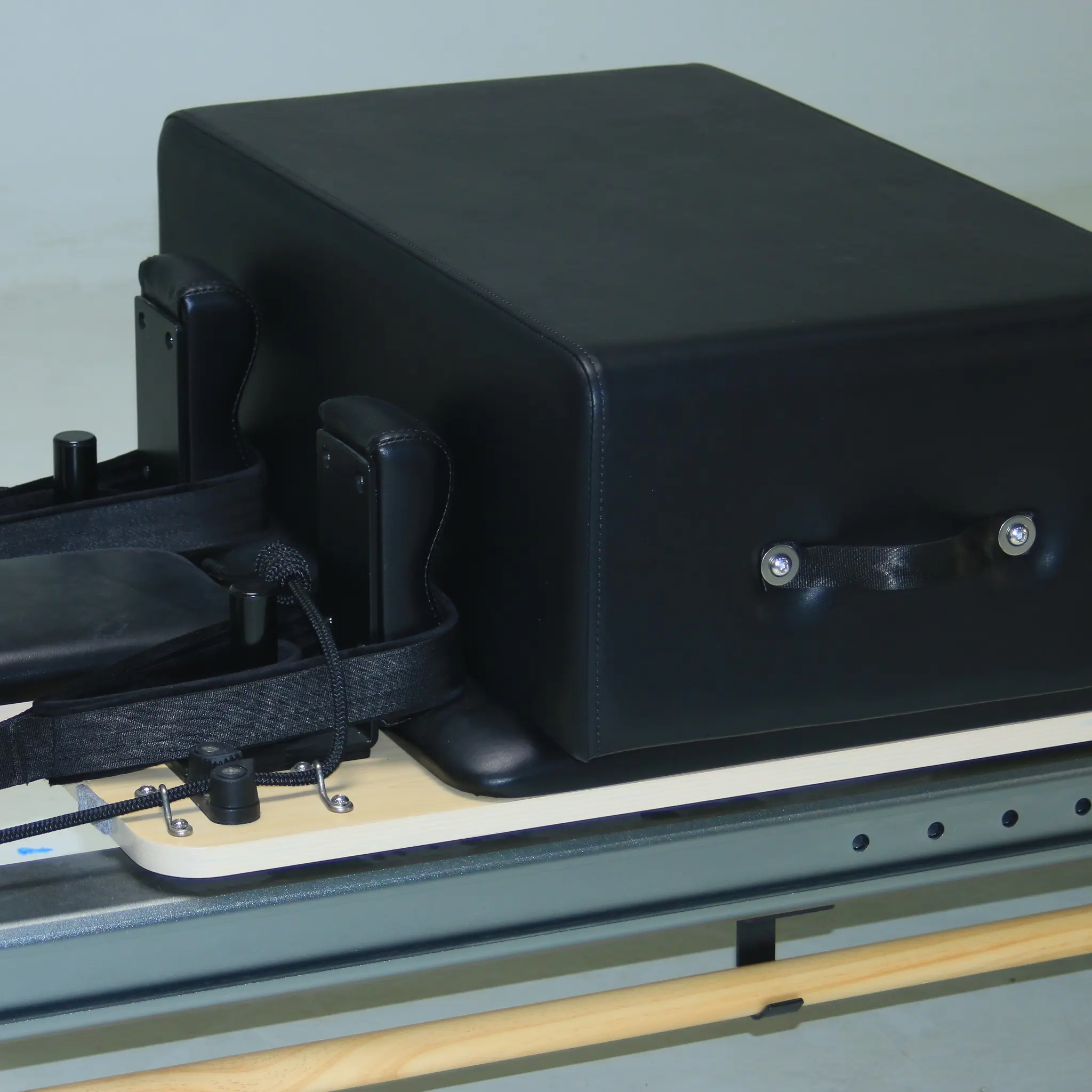

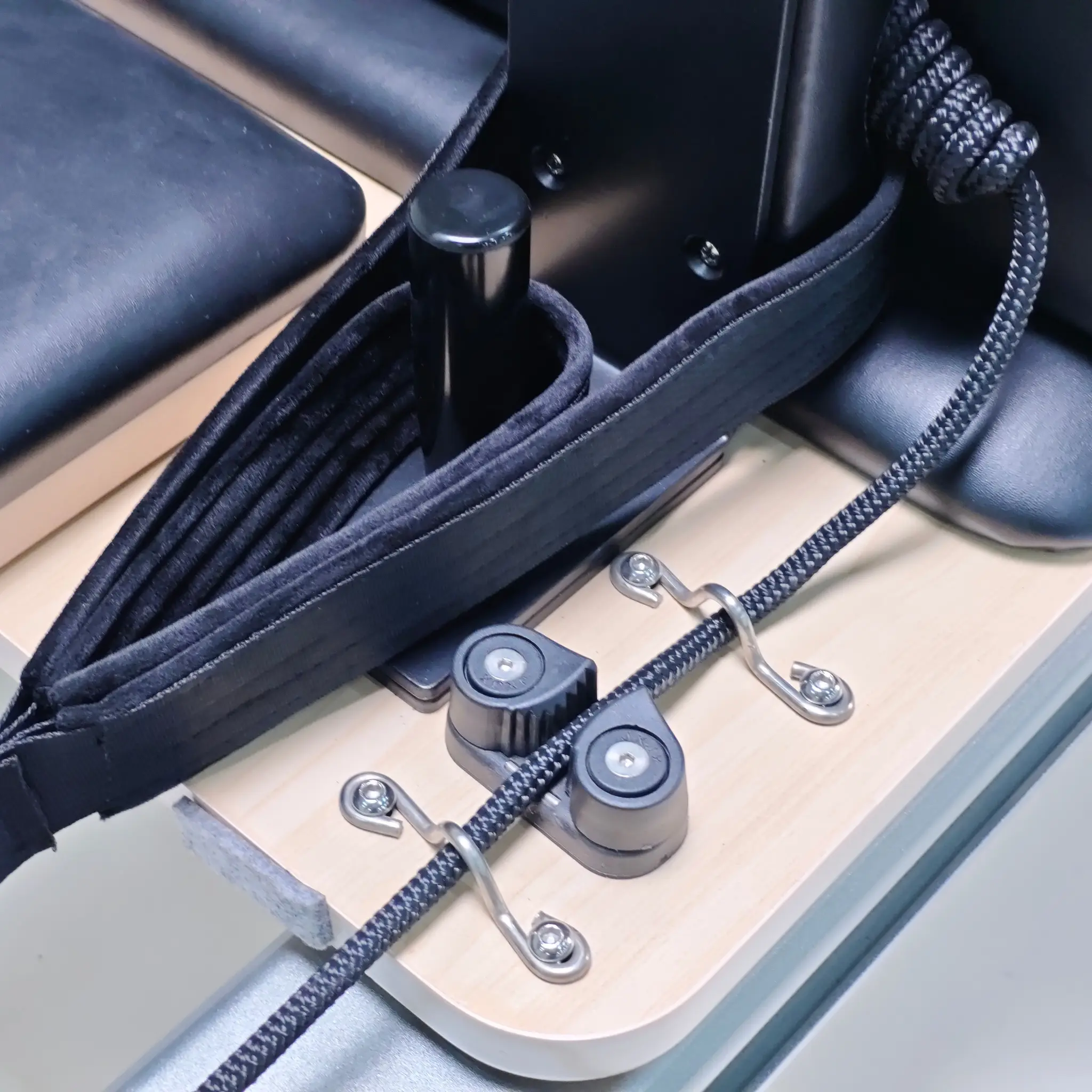

Studio accessories include a sitting box, jumpboard, converter mat, double loops, nylon ropes, hook strap, push-through bar and safety rope
One-millimeter microfiber upholstery and high-density foam create a durable, serviceable studio contact surface
03 / OEM SERVICE
OEM available for this model
Logo, frame color, upholstery and packaging can all be customized to your brand. Send your logo to preview a mockup first.
